RT Series 5/6/8/10 kVA Single Phase Online UPS
A total solution for reliable power with high availability and performance
The Amplon RT Series 5/6/8/10kVA is an online double-conversion UPS that provides best-in-class designs in compact 2U size, high power density, system efficiency, and versatile configurations to fulfil customers' requirements.
Unity output power factor maximises capacity for more critical loads, while outstanding energy savings can be achieved based on the AC-AC efficiency of up to 96.5% and 99% in ECO mode. In addition, RT Series 5/6/8/10kVA UPS is the first in the market that offers standard Li-ion external battery cabinets, which deliver better power density and sustainability.
Along with the parallel capacity of up to four units, the new series is the ideal small power UPS for mission-critical applications, such as servers, data centres, telecommunications, and manufacturing.
The 5kVA and 6kVA models come with a 16x7Ah battery & power distribution box.
The 8kVA and 10kVA models come with a 10x9Ah battery & power distribution box.
A total solution for reliable power with high availability and performance
The Amplon RT Series 5/6/8/10kVA is an online double-conversion UPS that provides best-in-class designs in compact 2U size, high power density, system efficiency, and versatile configurations to fulfil customers' requirements.
Unity output power factor maximises capacity for more critical loads, while outstanding energy savings can be achieved based on the AC-AC efficiency of up to 96.5% and 99% in ECO mode. In addition, RT Series 5/6/8/10kVA UPS is the first in the market that offers standard Li-ion external battery cabinets, which deliver better power density and sustainability.
Along with the parallel capacity of up to four units, the new series is the ideal small power UPS for mission-critical applications, such as servers, data centres, telecommunications, and manufacturing.
The 5kVA and 6kVA models come with a 16x7Ah battery & power distribution box.
The 8kVA and 10kVA models come with a 10x9Ah battery & power distribution box.
A total solution for reliable power with high availability and performance
The Amplon RT Series 5/6/8/10kVA is an online double-conversion UPS that provides best-in-class designs in compact 2U size, high power density, system efficiency, and versatile configurations to fulfil customers' requirements.
Unity output power factor maximises capacity for more critical loads, while outstanding energy savings can be achieved based on the AC-AC efficiency of up to 96.5% and 99% in ECO mode. In addition, RT Series 5/6/8/10kVA UPS is the first in the market that offers standard Li-ion external battery cabinets, which deliver better power density and sustainability.
Along with the parallel capacity of up to four units, the new series is the ideal small power UPS for mission-critical applications, such as servers, data centres, telecommunications, and manufacturing.
The 5kVA and 6kVA models come with a 16x7Ah battery & power distribution box.
The 8kVA and 10kVA models come with a 10x9Ah battery & power distribution box.
-
True online double-conversion topology and zero transfer time to battery provides 24/7 full-time protection
Wide input voltage range allows the UPS to operate in harsh electrical environments and extends battery life
AC-start function allows the UPS to be switched on without connecting to a battery
Programmable load bank disconnects non-critical loads when a blackout occurs and reserves more battery power for critical loads
Up to four units parallel capacity allows redundancy and load expansion (Apply to 5-10kVA)
Hot swappable batteries ensure continuous operation even when batteries are being replaced
VRLA and Li-ion External Battery Cabinet (EBC) are available for scalable runtime
Extended Runtime models support flexible battery quantity for battery investment optimization. And when one battery fails, it could be removed without replacing the entire battery string, reducing maintenance cost and efforts

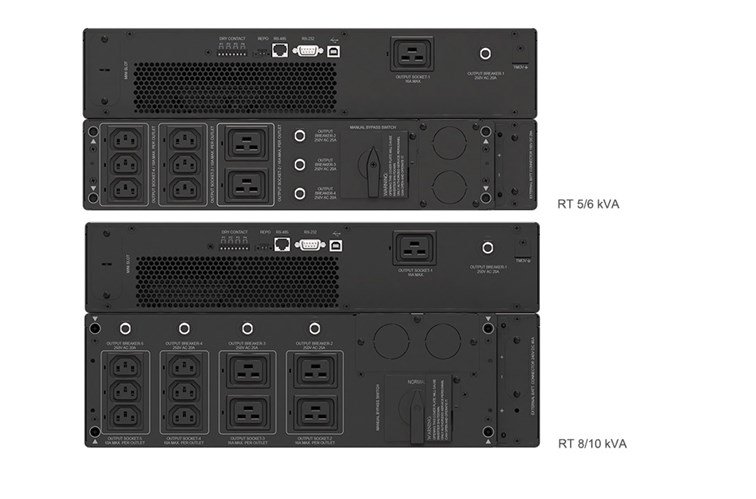

The Power Distribution Box (PDB) and Maintenance Bypass Breaker (MBB), which are default to RT 5-10kVA Standard Runtime models, enable simple configuration
The Maintenance Bypass Breaker (MBB) is optional for easy UPS replacement without powering down critical systems
The rRPP (Rack Remote Power Panel), which can be integrated with standard server racks, simplifies power output distribution and power monitoring
Common battery configuration is supported in RT 15/20kVA parallel mode to save installation space and additional battery costs
-
Unity output power factor guarantees no de-rating with loads and provides permanent 100% kW
Best-in-class AC-AC efficiency of up to 96.5% and 99% in ECO mode lowers energy costs
Automatic fan speed control maximizes system efficiency and significantly reduces audible noise and prolongs battery life
Fan failure detection sends early warnings to facilitate predictive maintenance of UPS
-
Intelligent battery management to extend battery life and maximise battery performance. The battery ageing detection monitors battery status for predictive maintenance, and the 3-stage charging mechanism keeps the battery from continuous float charging during the intermission stage to prolong battery life
Excellent local management through a user-friendly graphical and multi-lingual LCD display
Various types of communication interfaces, including USB, RS-232, and RS-485 ports, mini slot, REPO/ROO for remote management, and in-built dry contacts for monitoring and notification of system operation conditions
UPS management software such as ShutdownAgent and InfraSuite Device Manager allow users to monitor UPS status and protect critical devices
-
On-line double conversion topology
Power factor correction
Rack or tower configuration - 4U for 5/6kVA and 5U for 8/10kVA
High output power factor 1
Internal battery pack
Cold start
REPO or ROO function
Input breaker protection, Surge protection and EMI filter
Battery deep discharging protection
Monitoring by local connection (RS232, USB) or SNMP card - ethernet
Optional ECO mode
Built-in manual bypass and PDB
-
Networks
Servers
Telecom
Light Industry
Medical Control
-
UPS
User Manual
USB Cable
Bracket Ears
Tower Stand with expanders
Terminals
Cord end terminals
Runtime Table
Battery in 5kVA, 6kVA eBC (7Ah): BB SHR7-12
Battery in 10kVA (9Ah): BB HR9-12-T2, BB HRC9-12-T2
| UPS | Load % | 10 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 75 | 80 | 90 | 100 |
| RT 5kVA + | UPS load (W) | 500 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 3500 | 3750 | 4000 | 4500 | 5000 |
| 1 EBC 16x7Ah | Backup (min) | 74.4 | 45.3 | 35.2 | 26.7 | 21 | 15.2 | 11.5 | 9.5 | 7.8 | 8.4 | 5.6 | 5.1 |
| 2 EBC 16x7Ah | Backup (min) | 61 | 27 | 16.5 | 11 | ||||||||
| 3 EBC 16x7Ah | Backup (min) | 96 | 45.5 | 28 | 19.5 | ||||||||
| 4 EBC 16x7Ah | Backup (min) | 131 | 63.5 | 40 | 28.5 | ||||||||
| 5 EBC 16x7Ah | Backup (min) | 166.5 | 82 | 52.5 | 37.5 | ||||||||
| RT 5kVA + | UPS load (W) | 500 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 3500 | 3750 | 4000 | 4500 | 5000 |
| 1 EBC 20x9Ah | Backup (min) | 145 | 87.5 | 60 | 46 | 33 | 25 | 19 | 14.5 | 13.3 | 12.5 | 11 | 9.5 |
| 2 EBC 20x9Ah | Backup (min) | 123.5 | 53.2 | 30 | 19.3 | ||||||||
| 3 EBC 20x9Ah | Backup (min) | 199.5 | 91 | 54.2 | 36 | ||||||||
| 4 EBC 20x9Ah | Backup (min) | 131 | 63.5 | 40 | 28.5 | ||||||||
| 5 EBC 20x9Ah | Backup (min) | 276.4 | 130 | 79.5 | 54.5 | ||||||||
| RT 6kVA + | UPS load (W) | 600 | 1200 | 1500 | 1800 | 2400 | 3000 | 3600 | 4200 | 4500 | 4800 | 5400 | 6000 |
| 1 EBC 16x7Ah | Backup (min) | 70.2 | 30.7 | 24.3 | 21.3 | 14.8 | 9.6 | 8.5 | 6.5 | 5.6 | 5.3 | 4.3 | 3.1 |
| 2 EBC 16x7Ah | Backup (min) | 50 | 22 | 13 | 8.5 | ||||||||
| 3 EBC 16x7Ah | Backup (min) | 79.5 | 37 | 22.5 | 15.5 | ||||||||
| 4 EBC 16x7Ah | Backup (min) | 109 | 52 | 32.5 | 22.5 | ||||||||
| 5 EBC 16x7Ah | Backup (min) | 137 | 67 | 42.5 | 30 | ||||||||
| RT 6kVA + | UPS load (W) | 600 | 1200 | 1500 | 1800 | 2400 | 3000 | 3600 | 4200 | 4500 | 4800 | 5400 | 6000 |
| 1 EBC 20x9Ah | Backup (min) | 125 | 65 | 47 | 38.5 | 28 | 20 | 14.8 | 11 | 10.5 | 8 | 7.5 | |
| 2 EBC 20x9Ah | Backup (min) | 100.5 | 41.4 | 22.5 | 14.5 | ||||||||
| 3 EBC 20x9Ah | Backup (min) | 164.4 | 72.5 | 42 | 27.5 | ||||||||
| 4 EBC 20x9Ah | Backup (min) | 228.5 | 105 | 63 | 42.5 | ||||||||
| RT 8kVA + | UPS load (W) | 800 | 1600 | 2000 | 2400 | 3200 | 4000 | 4800 | 5600 | 6000 | 6400 | 7200 | 8000 |
| 1 EBC 20x9Ah | Backup (min) | 97.3 | 49.3 | 36.3 | 31.7 | 22 | 12.5 | 13.6 | 10.7 | 9.3 | 9 | 7.2 | 5.1 |
| 2 EBC 20x9Ah | Backup (min) | 71 | 27 | 14.5 | 9.6 | ||||||||
| 3 EBC 20x9Ah | Backup (min) | 119 | 49.5 | 27.5 | 17.5 | ||||||||
| 4 EBC 20x9Ah | Backup (min) | 167.5 | 73.5 | 42.5 | 27.5 | ||||||||
| 5 EBC 20x9Ah | Backup (min) | 217 | 98 | 58 | 39 | ||||||||
| RT 10kVA + | UPS load (W) | 1000 | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 | 7500 | 8000 | 9000 | 10000 |
| 1 EBC 20x9Ah | Backup (min) | 77.9 | 36.3 | 30.2 | 23.1 | 12.5 | 9.5 | 7.5 | 6.5 | 6.2 | 5.1 | 4.5 | 3.7 |
| 2 EBC 20x9Ah | Backup (min) | 53 | 19.4 | 10.5 | 7.4 | ||||||||
| 3 EBC 20x9Ah | Backup (min) | 91 | 36 | 19.5 | 12.5 | ||||||||
| 4 EBC 20x9Ah | Backup (min) | 130 | 54.8 | 30.5 | 19.5 | ||||||||
| 5 EBC 20x9Ah | Backup (min) | 170 | 74 | 42.5 | 28 |
Specification
| 5 kVA / 5 kW | 6 kVA / 6 kW | 8 kVA/ 8 kW | 10 kVA/ 10 kW | |
|---|---|---|---|---|
| Model | UPS502R2RT2N035 | UPS602R2RT2N035 | UPS802R2RT2N035 | UPS103R2RT2N035 |
| Voltage | 200Vac / 208Vac / 220Vac / 230Vac / 240Vac, single phase | |||
| Input Voltage Range | 100 ~ 175V (50% - 100% load) | 175 ~ 280V (100% load) | ||
| Input Frequency Range | 40 - 70 Hz | |||
| Output Voltage Regulation | 200 / 208 / 220 / 230 / 240 Vac | |||
| Output Frequency Regulation | 50 / 60 Hz (+/- 0,05 Hz) | |||
| Overload | 106%~125% : 5 min; 126%~150% : 1 min ; > 150% : 500ms | |||
| Output Receptacle | IEC320 C13 x 6 IEC320 C19 x 3 |
IEC320 C13 x 6 IEC320 C19 x 5 |
||
| Internal Battery | 16 pcs 12V / 7Ah | 20 pcs 12V / 9Ah | ||
| Interface | MINI Slot x 1, USB Port x 1, RS232 Port x 1, RS485 Port x 1,
REPO/ROO Port x 1, Dry Contact x 4 |
|||
| UPS Dimensions (WxDxH) mm | 440 x 665 x 176 mm | 440 x 750 x 218 mm | ||
| UPS Weight | 54 kg | 85,5 kg | ||
| Max Charging Current | 8A (default 1A) |
6A (default 1,5A) |
||
| External Battery Cabinet (EBC) | option BBU161B107035 |
option BBU201B109035 |
||
| Battery Type in EBC | 16 pcs 12V / 7Ah | 20 pcs 12V / 9Ah | ||
| Dimensions (WxDxH) mm | 440 x 565 x 88 mm | 440 x 650 x 130 mm | ||
| Weight | 39,2 kg | 67 kg | ||
